Portable Dry chemical powder fire extinguishers:
Filling agent: ABC powder 40% ,50% ,60% ,70%, 75%, 80% ,85% ,90%
BC powder: 40% , 82%
Size: 0.5kg (1lb), 2kg, 2.3kg(5lb), 3kg, 4kg, 4.5kg(10lb), 5kg, 6kg, 15lbs, 8kg, 9kg, 10kg, 12kg

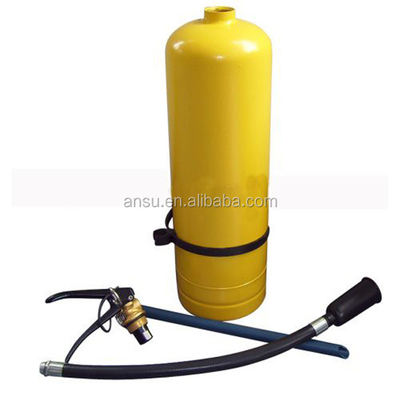

Portable dry power extinguisher is kind of light, efficient and movable fire control
equipment with ABC (ammonium phosphate) dry power extinguishing agent and driving
gas nitrogen filled in a fullsealed container. Nitrogen drives dry power extinguishing
agent to eject to put out fire. The extinguisher is able to put out fire quickly and is light,
efficient, convenient for use, portable, safe and reliable.
Portable dry power extinguisher applies to put out just burning fires of Class A fire
(ordinary solid material fire), Class B fire (flammable liquid fire), Class C fire
(gas fire) and Class E fire (charged equipment fire). It is widely used to prevent and control
fire in factory, school, restaurant, department, warehouse, vehicle and ship.
| Product Code | 1kg | 2kg | 4.5kg (10lb) | 9kg(20lb) | 12kg |
| Out-diameter (mm) | 90/85 | 110 | 130 | 182 | 182 |
| Cylinder-high (mm) | 240/260 | 310 | 455 | 500 | 600 |
| Cylinder weight (kg) | 0.54 | 0.85 | 1.1 | 3.15 | 3.85 |
| Extinguisher weight (kg) | 1.86 | 3.16 | 5.9 | 13 | 16.5 |
| Volume (L) | 1.25L | 2.5 | 4.5 | 10.6 | 14.1 |
| Filling weight (kg) | 1kg | 2kg | 4.5kg | 9kg | 12kg |
| Temperature range | -30℃~ +60℃ | -30℃~ +60℃ | -30℃~ +60℃ | -30℃~ +60℃ | -30℃~ +60℃ |
| Work pressure (Bar) | 12 | 12 | 12 | 12 | 12 |
| Test pressure (Bar) | 21 | 21 | 21 | 21 | 21 |
| Discharge time (S) | 8 | 11 | 15 | 20 | 20 |
| Discharge range (M) | 3–5 | 3–5 | 4–7 | 5–8 | 5–8 |
| Fire rating | 5A 34BC | 8A 70BC | 21A 113BC | 34A 233BC | 55A 233BC |
